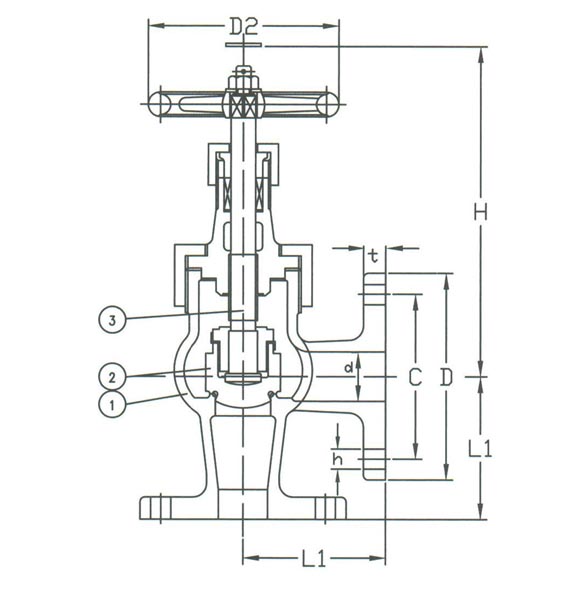

1 – Body – Bronze – BC6
2 – Disc – Bronze – BC6
3 – Stem – Brass – C3771BD
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220 – 16K
| Size | L1 | D | C | NO. OF HOLES | h |
| 015 | 70 mm | 95 mm | 70 mm | 4 | 15 mm |
| 020 | 75 mm | 100 mm | 75 mm | 4 | 15 mm |
| 025 | 85 mm | 125 mm | 90 mm | 4 | 19 mm |
| 032 | 95 mm | 135 mm | 100 mm | 4 | 19 mm |
| 040 | 100 mm | 140 mm | 105 mm | 4 | 19 mm |
