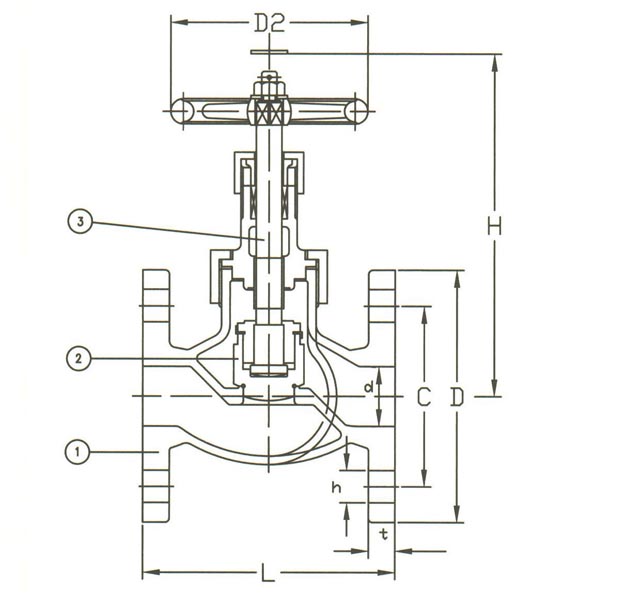

1 – Body – Bronze – BC6
2 – Disc – Bronze – BC6
3 – Stem – Brass – C3771BD
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220 – 16K
SIZE | L | D | C | NO. OF HOLES | h |
015 | 110 mm | 95 mm | 70 mm | 4 | 15 mm |
020 | 120 mm | 100 mm | 75 mm | 4 | 19 mm |
025 | 130 mm | 125 mm | 90 mm | 4 | 19 mm |
032 | 160 mm | 135 mm | 100 mm | 4 | 19 mm |
040 | 180 mm | 140 mm | 105 mm | 4 | 19 mm |
